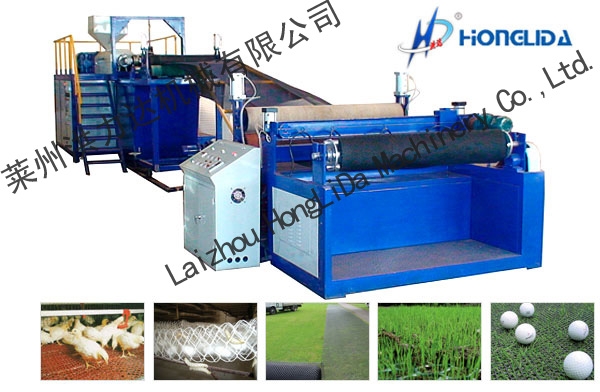

Plastic Net Production Line
This production Line uses for producing plastic rigid flat net, treat HDPE, LDPE, PP as main material and anti-anti-static, anti-aging agent are added. Poultry breeding net, mattress net with various forms and specs can be extruded with definite tensile intensity, aging-resistant, corrosion-resistant performance. It's widely use for those item, such as: golf-course, park, horticulture, airport, highway as the ground treatment.
Process Flow
Material mixing---- Loading---- Heating and extruding----Molding---- Cooling----Cutting---Flating---- Haul off ----Winding---- Finished.
Main Technical Parameter
| Product Show |
|
Model
|
SPW-1500
|
SPW-2000
|
SPW-2500
|
SPW-3000
|
SPW-4000
|
||
|
Material
|
PP, PE
|
PE, PP
|
PE, PP
|
PE, PP
|
PE, PP
|
||
|
Screw Diameter (mm)
|
ф65
|
ф65
|
ф80
|
ф90
|
ф120
|
||
|
Die Head
|
Rotational die head
|
||||||
|
Total Power (KW)
|
35
|
46
|
62
|
78
|
98
|
||
|
Dimension (M)
|
9.2×2.8×3.5
|
11×3.2×3.8
|
12×3.7×4.2
|
16×3.8×4.6
|
18×5.2×5.6
|
||
|
Weight (T)
|
3.2
|
4.2
|
5.6
|
7.8
|
8.8
|
||
